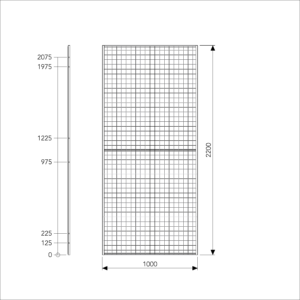

If you need a storage space where there is a low risk of break-in, choose the UR 350 panel, which is the backbone of Troax Classic. This panel provides you with a light and airy storage environment. UR 350 can also be used as a partition wall in our other systems. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 50x50 mm, is welded to a 19x19 mm tubular frame for added strength. The panel is available in 8 widths between 200 mm up to 1500 mm.

Variants
Downloads
Combine with

Variants

Height 2200 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35120001	Panel UR350 2200x1200	1200	50x50	19x19
35150001	Panel UR350 2200x1500	1500	50x50	19x19
35020001	Panel UR350 2200x200	200	50x50	19x19
35030001	Panel UR350 2200x300	300	50x50	19x19
35050001	Panel UR350 2200x500	500	50x50	19x19
35070001	Panel UR350 2200x700	700	50x50	19x19
35080001	Panel UR350 2200x800	800	50x50	19x19
35100001	Panel UR350 2200x1000	1000	50x50	19x19

Downloads

Name
Product sheet - PANEL UR350_EN.pdf	Type Product sheets	Download

Combine with

Door UR350

The UR350 door is our most common door and is used in Troax Classic.

Panel UR300

The UR 300 panel is mainly used for inner partitioning walls or roof within a secured storage application.

Panel Type P

Type P is the steel sheet panel alternative for Troax Classic, when protection from outside view is requested.

Door Type P

Door UR P is one of the steel sheet door alternatives for Troax Classic. Door UR SP is the other one.

Door URSP

The UR SP steel sheet door can be used in both Troax Classic and Troax Medium when protection from outside view is requested.
