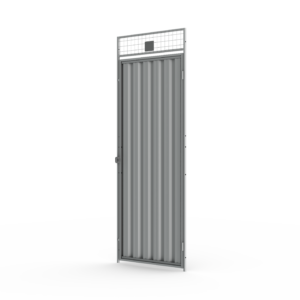

      Door Type P

      UR P steel sheet hinged door provides an alternative to mesh doors for storage areas requiring private security. This 900 mm door is supplied with a securing plate for padlock. Doors are available in heights from 2200mm and they are compatible with the type P system. The door frame and the mesh in the top are painted in grey RAL 7037 and the corrugated steel sheet has an aluminium-zinc finish. Doors are supplied preassembled and ready for installation.

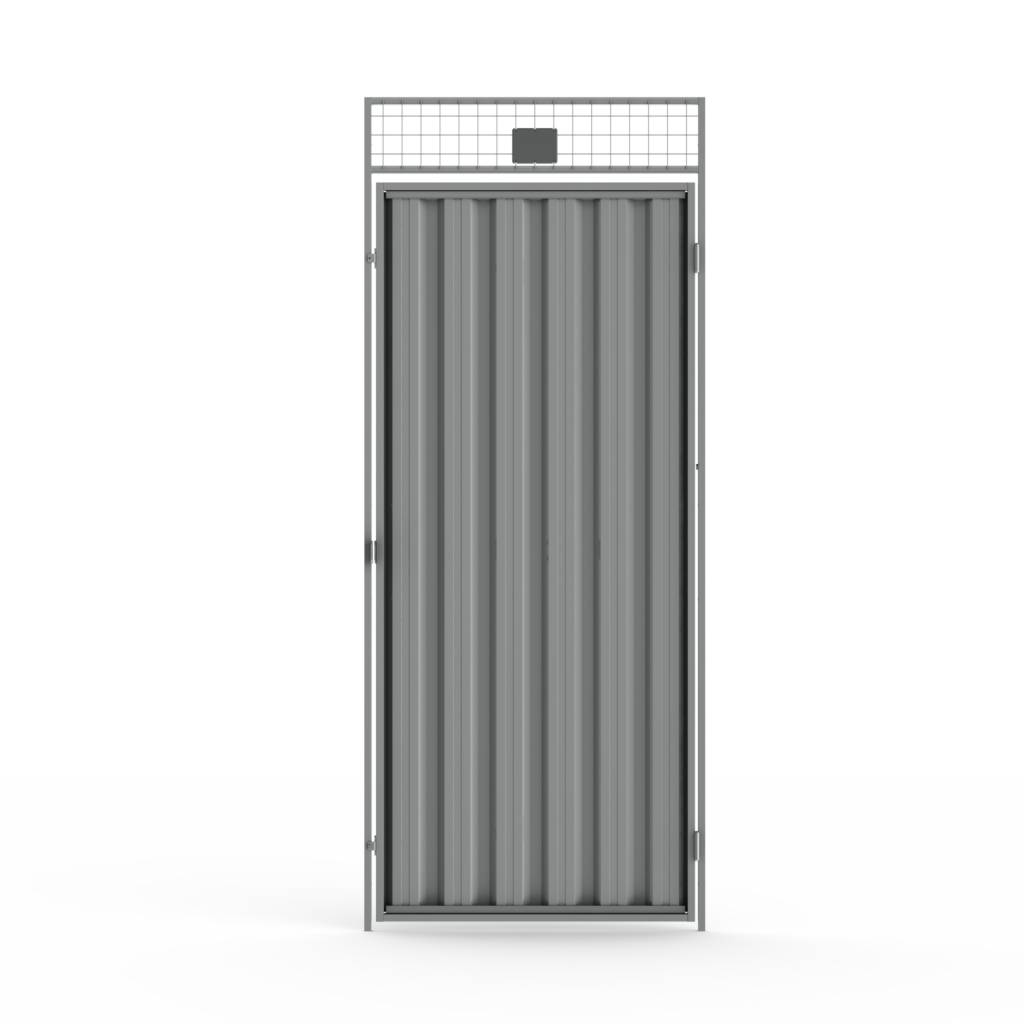

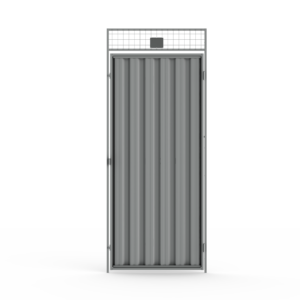

      Type P Door Front View.png Type P Door Front View.png

      Variants

      Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
      "1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5"  All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

      Art. Nr Components Width (mm) Mesh size (mm) Frame (mm)
      35090818 Door UR P900x2200 L 900
      35090828 Door UR P900x2200 R 900
      35090838 Door UR P900x2200 L Inw. Alu-zinc 900
      35090848 Door UR P900x2200 R Inw. Alu-zinc 900

      Assembly Instructions

      Assembly instruction - Cetus Type P.pdf PDF

      Downloads

      Name
      Product sheet - DOOR TYPE P_EN.pdf
      Type
      Product sheets       		Download
