Door URSP - Troax

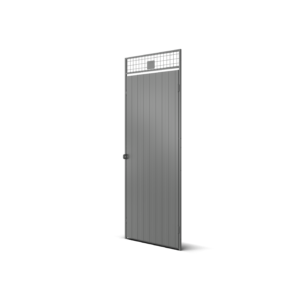

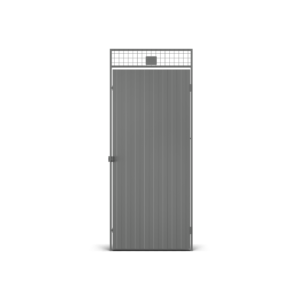

UR SP steel sheet hinged door provides an alternative to mesh doors for storage areas requiring private security. The door is supplied with a securing plate for padlock. Doors are available in heights from 2200mm and width is 900 mm. Locking alternative is padlock or cylinder lock. The doors are compatible with the Type P system and the UR SP panel system and can also be combined with our mesh panels systems.

Variants
Assembly instructions
Downloads
Combine with

Variants

Height 2200 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35090301	Door UR SP AC 900 R	900	Steel sheet	19x19
35090311	Door UR SP AC 900 L	900	Steel sheet	19x19
35090321	Door UR SP EC 900 R	900	Steel sheet	19x19
35090331	Door UR SP EC 900 L	900	Steel sheet	19x19
35090161	Door UR SP P 900 R	900	Steel sheet	19x19
35090171	Door UR SP P 900 L	900	Steel sheet	19x19

Assembly Instructions

Assembly instruction_Storage system Plastic spacer Assa URSP.pdf

Interactive 3D

PDF

Downloads

Name
Product sheet - DOOR UR SP_EN.pdf	Type Product sheets	Download

Combine with

Panel UX450

The UX 450 mesh panel is the base of Troax Medium.

Panel URSP

UR SP is the steel sheet panel alternative for Troax Medium, when protection from outside view is requested. It can easily be combined with our mesh panels, using them as partitioning walls.

Panel UR350

The UR 350 panel is our most used panel and is the backbone of Troax Classic.

Panel Type P

Type P is the steel sheet panel alternative for Troax Classic, when protection from outside view is requested.
