Panel Type P

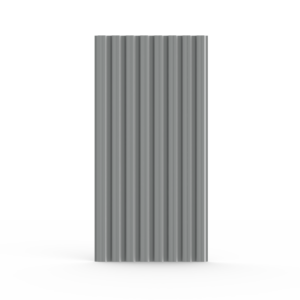

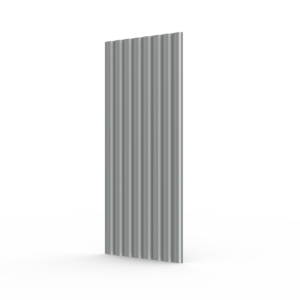

Type P consists of panels made of corrugated alu-zinc sheeting 0.5mm. The panel height is 2200mm and It is available in 5 widths between 135 mm and 1100 mm. Type P is intended as alternative front panels when protection from outside view is requested. The sheet metal panels are compatible with the UR 350 and UX 450 mesh panels as partition walls or roofs.

Variants
Assembly instructions
Downloads
Combine with

Variants

Height 2200 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO.
"1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)
35000108	Panel P Flexi	133
35135108	Panel P 135 Alu-zinc	135
35275108	Panel P 275 Alu-zinc	275
35700108	Panel P 700 Alu-zinc	700
35835108	Panel P 835 Alu-zinc	835
35110108	Panel P 1100 Alu-zinc	1100

Assembly Instructions

Assembly instruction - Cetus Type P.pdf

PDF

Downloads

Name
Product sheet - PANEL TYPE P_EN.pdf	Type Product sheets	Download
