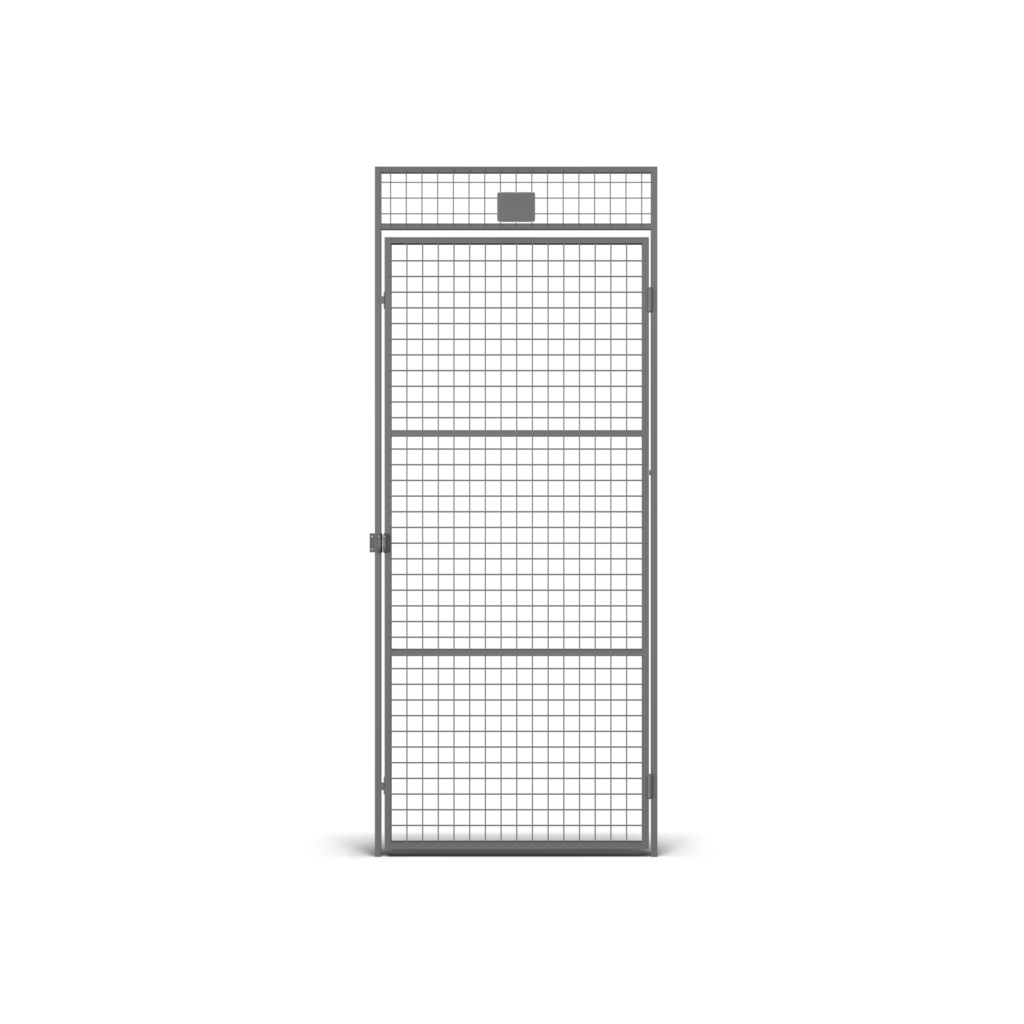

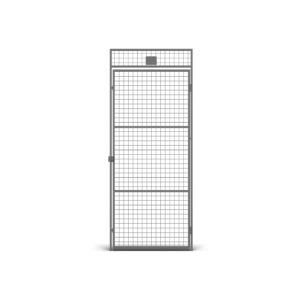

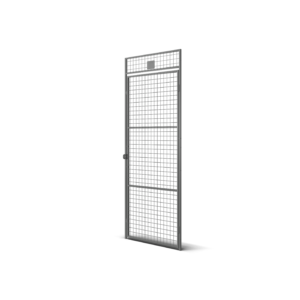

Our secure thresholdless door systems facilitate passage, particularly for people with physical disabilities. The UR 350 door has a frame made from 30×20 mm steel tubing and two specially designed cross tubes, making it stable and secure. The mesh size of 50×50 mm is almost impossible to force by hand. Doors are available in heights from 2,200 mm and there are two standard widths, 750 mm and 900 mm. The doors are delivered pre-assembled and ready for mounting and are supplied with a securing plate for padlock. Standard colour is grey RAL 7037, but also available in a wide range of other colours.

Variants
Downloads
Combine with

Variants

Height 2200 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO."1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35090021	Door UR350 P 900 R Inw.	900	50x50	19x19
35090011	Door UR350 P 900 L	900	50x50	19x19
35090001	Door UR350 P 900 R	900	50x50	19x19
35075021	Door UR350 P 750 R Inw.	750	50x50	19x19
35075031	Door UR350 P 750 L Inw.	750	50x50	19x19
35075001	Door UR350 P 750 R	750	50x50	19x19
35075011	Door UR350 P 750 L	750	50x50	19x19
35090031	Door UR350 P 900 L Inw.	900	50x50	19x19

Downloads

Name
Product sheet Door UR350	Type Product sheets	Download

Combine with

Panel UR350

The UR 350 panel is our most used panel and is the backbone of Troax Classic.

Panel UR300

The UR 300 panel is mainly used for inner partitioning walls or roof within a secured storage application.
