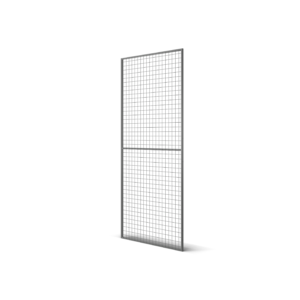

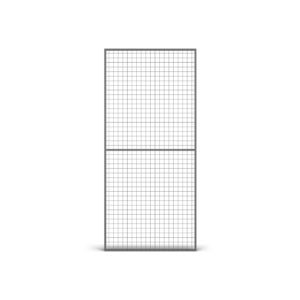

Panel UR350 ACL

UR 350 panels are an ideal solution for providing a secure work environment. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 50x50 mm, is welded to a 19x19 mm tubular frame, giving supreme protection against falling goods from pallet racks. The Anti Collapse panel system is an effective way to protect walkways and pallet rack aisles from unnecessary accidents. Panels are available in 3 widths from 700 to 1500 mm in height of 2200 or 1100 mm. Troax can supply mesh panels and systems in any colour or Hot Dip Galvanized execution. Our standard grey colour RAL 7037 creates the best visibility condition over the safety zone.

Variants
Downloads
Combine with

Variants

Height 1100 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35070011	Panel UR350 1100x700	700	50x50	19x19
35120011	Panel UR350 1100x1200	1200	50x50	19x19
35150011	Panel UR350 1100x1500	1500	50x50	19x19

Height 2200 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35030001	Panel UR350 2200x300	300	50x50	19x19
35070001	Panel UR350 2200x700	700	50x50	19x19

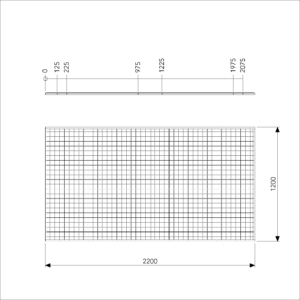

35120001	Panel UR350 2200x1200	1200	50x50	19x19
35150001	Panel UR350 2200x1500	1500	50x50	19x19

Downloads

Name
Product sheet - PANEL UR350 ACL_EN.pdf	Type Product sheets	Download
