Panel UR300 ACL

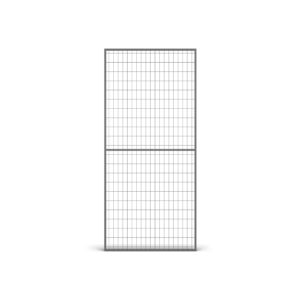

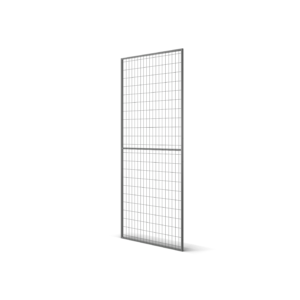

UR 300 panels are an ideal solution for providing a secure work environment. The mesh, constructed from press welded 2.5 mm wires with mesh aperture 100x50 mm, is welded to a 19x19 mm tubular frame, giving supreme protection against falling goods from pallet racks. The Anti Collapse panel system is an effective way to protect walkways and pallet rack aisles from unnecessary accidents. Panels are available in 3 widths from 700 to 1500 mm in height of 2200 or 1100 mm. Troax can supply mesh panels and systems in any colour or Hot Dip Galvanized execution. Our standard grey colour RAL 7037 creates the best visibility condition over the safety zone.

Variants
Downloads
Combine with

Variants

Height 1100 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35070111	Panel UR300 1100x700	700	50x100	19x19
35120111	Panel UR300 1100x1200	1200	50x100	19x19
35150111	Panel UR300 1100x1500	1500	50x100	19x19

Height 2200 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
35070101	Panel UR300 2200x700	700	50x100	19x19

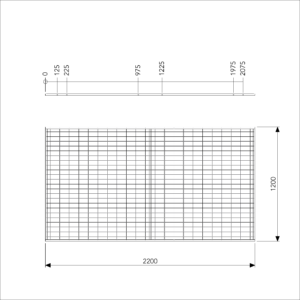

35120101	Panel UR300 2200x1200	1200	50x100	19x19
35150101	Panel UR300 2200x1500	1500	50x100	19x19

Downloads

Name
Product sheet - PANEL UR300 ACL_EN.pdf	Type Product sheets	Download

Combine with

Panel UR325 ACL

UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored.

Panel UR350 ACL

UR 350 is our most popular panel to use as a base in Troax anti-collapse mesh system.

Uni-Bracket

Our Uni-bracket is the newest generation of anti-collapse brackets, very flexible with features that can't be found elsewhere.

Ultima Bracket

As the Ultima bracket is fixed between the panels, it is the preferred bracket for panel UR325.
