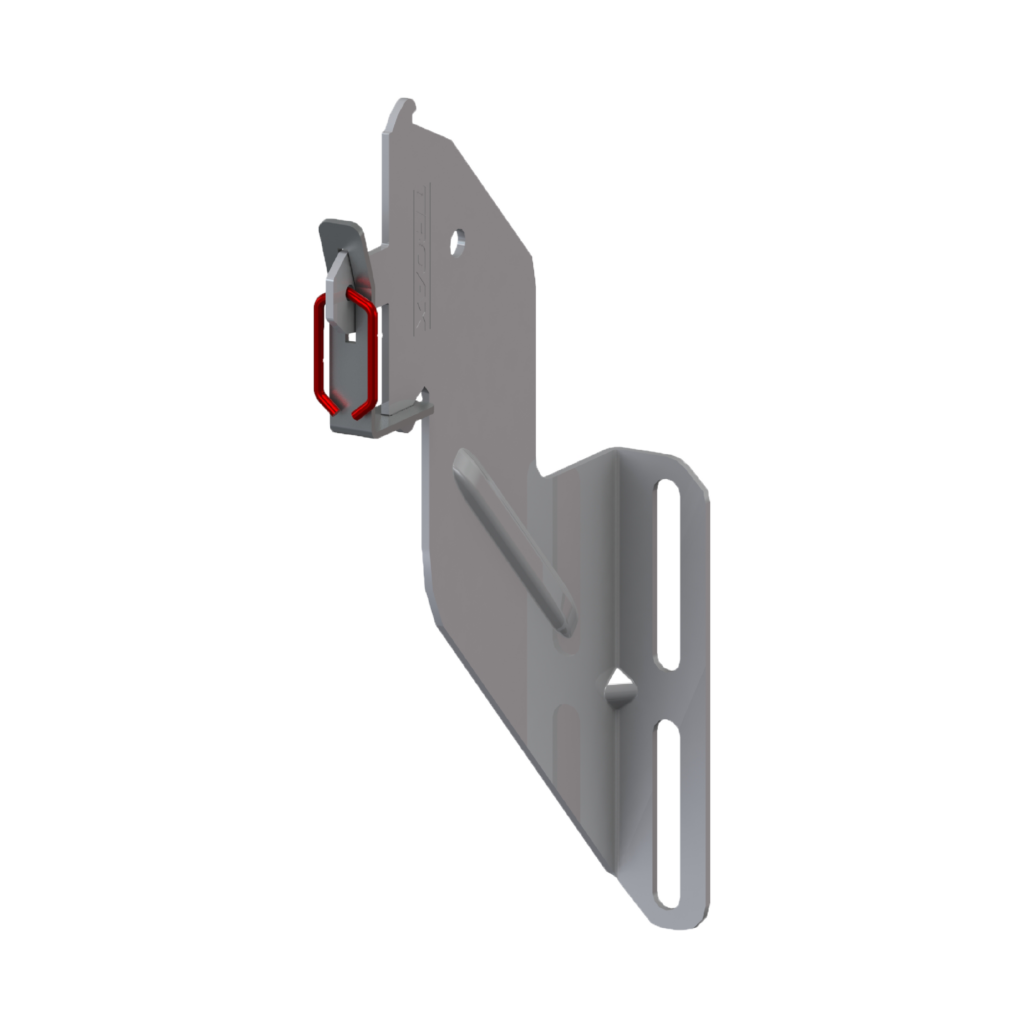

      Uni-Bracket

      The Uni-bracket is constructed of 3mm thick pre-galvanized steel and will provide excellent protection. It can be bolted to the rack in 4 different ways and is very flexible and strong. And together with the unique Kit Uni-bracket secure, the panel will stay in place in case of an accident. It is, together with the whole Anti-Collapse System successfully, tested to withstand an impact of 2500 Joules.  The Uni-brackets are available in stand-off dimensions from 50mm to 400mm. Compatible panels are UR 300 and UR 350.

      Multibracket.png Multibracket.png

      Variants

      Art. Nr Components
      25510108 Uni-bracket 50mm
      25510118 Uni-bracket 100mm
      25510128 Uni-bracket 150mm
      25510138 Uni-bracket 200mm
      25510148 Uni-bracket 250mm
      25510158 Uni-bracket 300mm
      25510168 Uni-bracket 400mm

      Assembly Instructions

      Assembly instruction Anti collapse system with Uni-Bracket_88754766.pdf Interactive 3D PDF

      Downloads

      Name
      Test Report - Anti Collapse 2500J, UR350.pdf
      Type
      Test reports       		Download
      Test Report - Anti Collapse 2500J, UR300.pdf
      Type
      Test reports       		Download
      Product sheet - Uni-Bracket_EN.pdf
      Type
      Product sheets       		Download
      certificate - Anti-collapse mesh system.pdf
      Type
      Documents       		Download

      Video

      Follow Me - Anti Collapse System
      A versitile anti collapse installation with Troax Uni Bracket LS

      Combine with

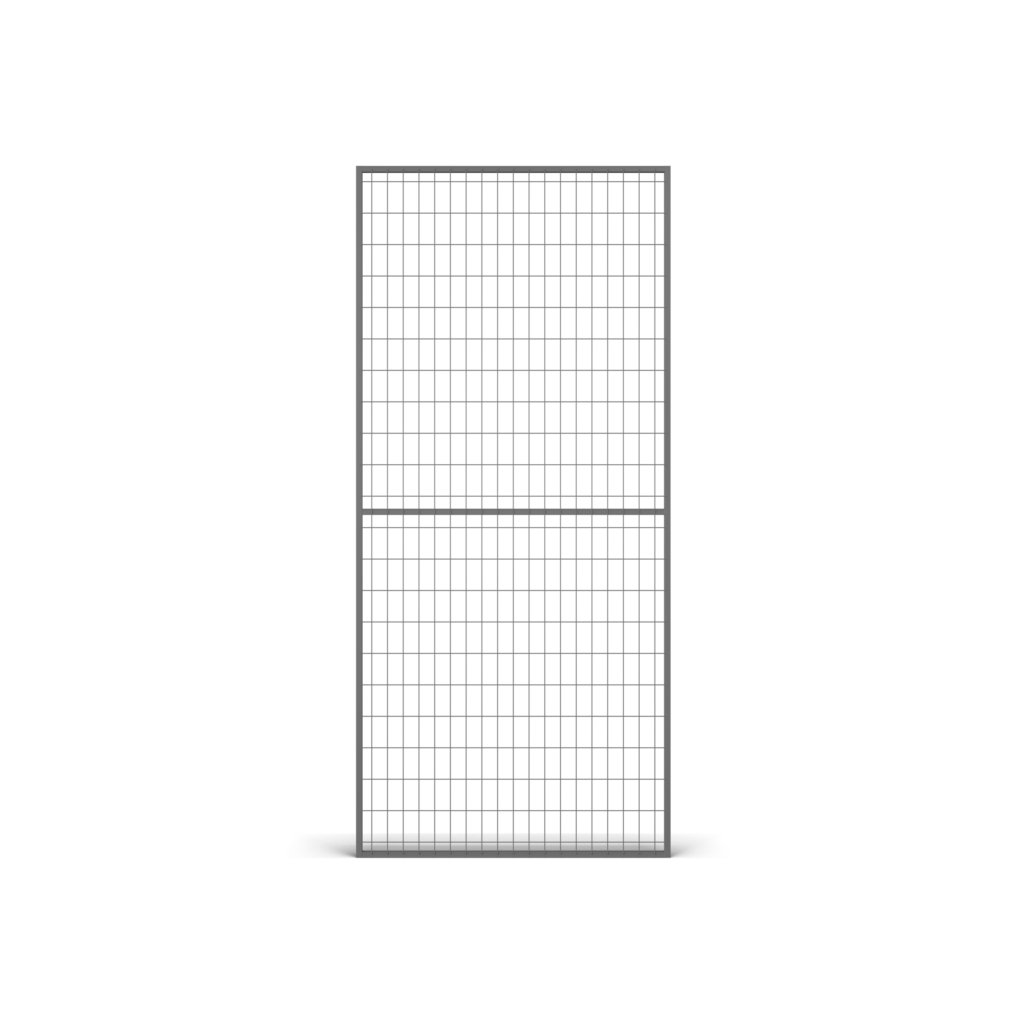

      Panel UR300 ACL

      UR 300 is the most cost-effective panel to use as a base in our Anti-Collapse System.
      Read more

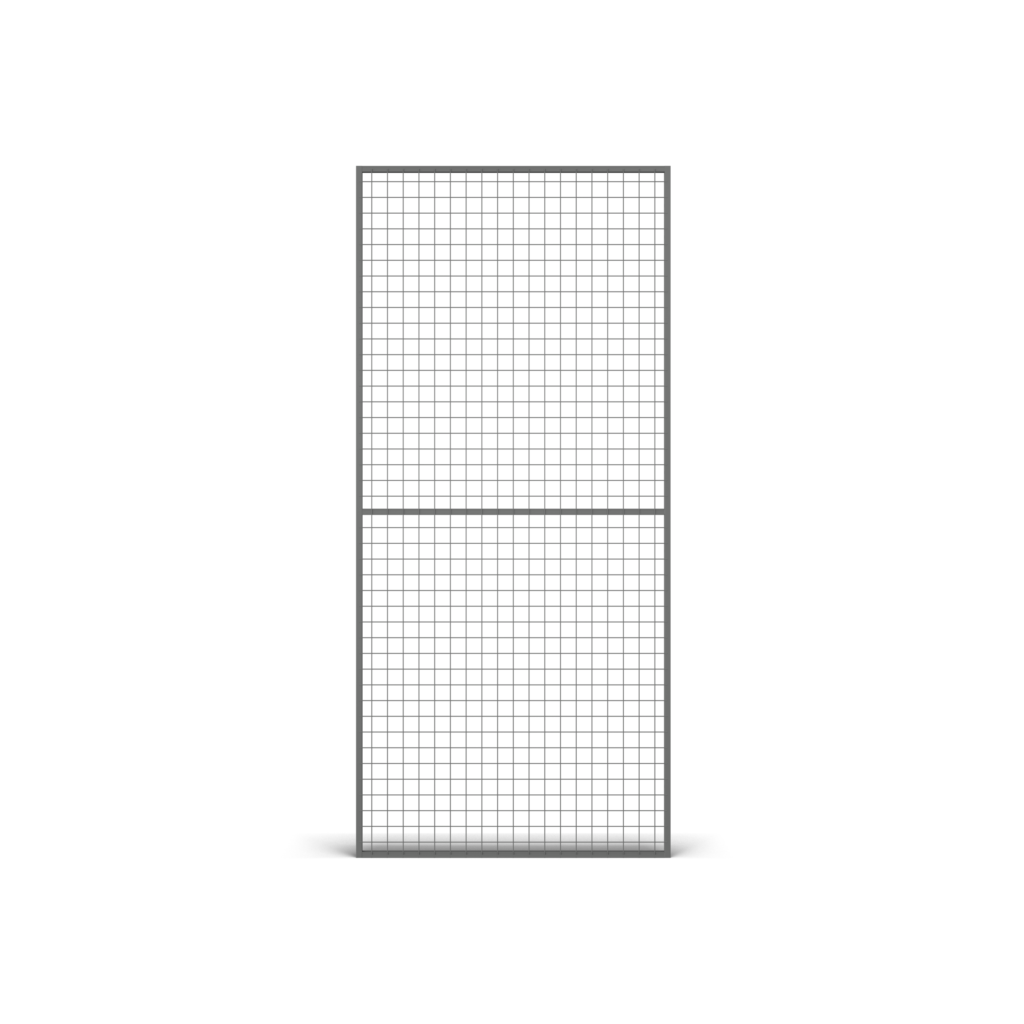

      Panel UR350 ACL

      UR 350 is our most popular panel to use as a base in Troax anti-collapse mesh system.
      Read more
