Bracket for Switches

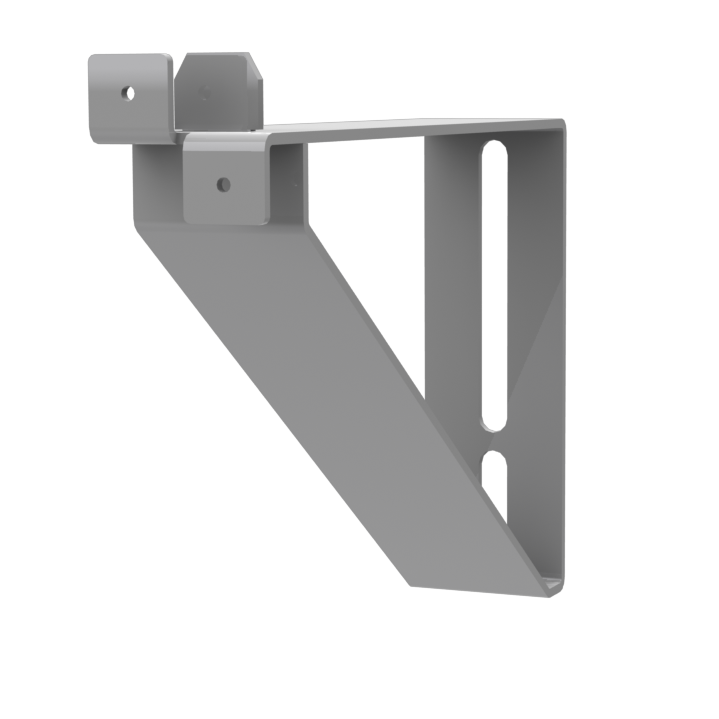

The triangular-shaped Ultima bracket is constructed of 3mm thick powder-coated steel and is secured in between panels and will withstand harsh industrial environments with high-security demands. Brackets are available in stand-off dimensions 150mm and 210mm. Compatible panels are UR 300, UR 325 and UR 350.

Variants
Assembly instructions
Downloads
Combine with
Interactive 3d

Variants

Art. Nr	Components
25500051	Ultima 150 mm
25500061	Ultima 210 mm

Assembly Instructions

Assembly Instruction - Anti collapse system with Ultima Bracket_88754239

Downloads

Name
Product sheet - ULTIMA BRACKET_EN.pdf	Type Product sheets	Download

Combine with

Panel UR300 ACL

UR 300 is the most cost-effective panel to use as a base in our Anti-Collapse System.

Panel UR325 ACL

UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored.

Panel UR350 ACL

UR 350 is our most popular panel to use as a base in Troax anti-collapse mesh system.
