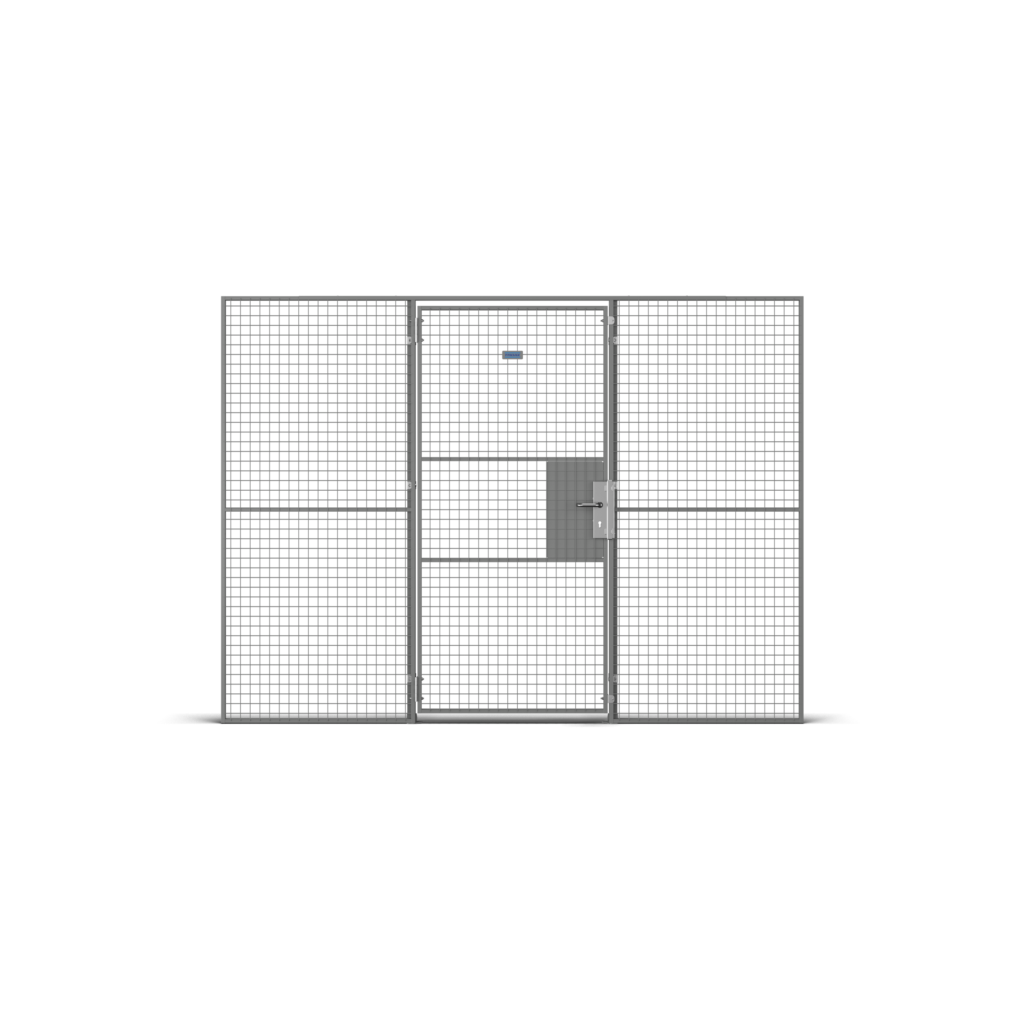

Single Hinged Door Caelum_Front.png
Product information
The system accommodates door widths from 800mm to 3000mm using wall panels, or 980mm to 2940mm with door leaf panels. Standard opening heights range from 2200mm to 4400mm. Security options include padlock, euro cylinder, ASSA cylinder, electric strike, panic bar, and electric lock with knob & handle configurations. All doors feature heavy-duty hinges and are engineered for intensive use in industrial environments. The modular design allows for seamless integration with Troax partition systems while maintaining consistent security levels across installations.
Variants
| Art. Nr | Components |
|---|---|
| 36800100 | Kit 300 UXP swing door |
| 36907730 | Kit 7730 MHL UX EC |
| 36907760 | Kit 7760 MHL UX EC |
| 36907750 | Kit 7750 MHL UX AC R |
| 36907740 | Kit 7740 MHL UX AC L |
Assembly Instructions
Combine with
Post 80x80 WP
Post 80x80 is our strongest post for partition wall and is compatible with all panel types. It can be used in the whole installation or just for extra door support.
Panel UX450 WP
UX 450 is our original and strongest panel used in Warehouse Partitioning mesh walls.
Panel UR325 WP
UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored.
Panel UR SP Partitioning System
UR SP is a steel sheet partition panel that is ideal when protection from outside view is requested.
Post 60x40 WP
Post 60x40 is the backbone of the partitioning wall system and it is compatible with all panel types and fixing systems.
