Panel UX450 WP

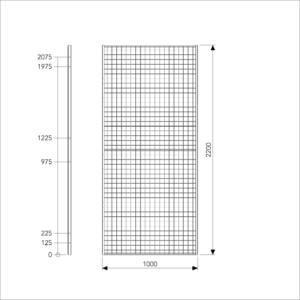

Panel UX 450 is available in 2 heights, 2200 mm and 800 mm, and in 8 widths between 200 mm up to 1500 mm. The mesh, constructed from press welded 3x3.75 mm wires with mesh aperture 50x50 mm, is welded to a 30x20 mm tubular frame for added strength. The system is fully demountable and relocatable. Panels are supplied powder coated as standard with a grey RAL 7037 finish, however other RAL colours are available upon request. Panels can also be supplied hot dip galvanized for external use or in cold storage areas.

Variants
Assembly instructions
Downloads
Combine with
Interactive 3d

Variants

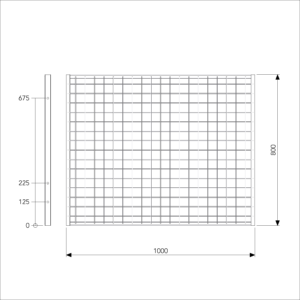

Height 800 mm

Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO."1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5" All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
36100011	Panel UX450 800x1000	1000	50x50	30x20
36120011	Panel UX450 800x1200	1200	50x50	30x20
36150011	Panel UX450 800x1500	1500	50x50	30x20
36020011	Panel UX450 800x200	200	50x50	30x20
36030011	Panel UX450 800x300	300	50x50	30x20
36050011	Panel UX450 800x500	500	50x50	30x20
36070011	Panel UX450 800x700	700	50x50	30x20
36080011	Panel UX450 800x800	800	50x50	30x20

Height 2200 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
36020001	Panel UX450 2200x200	200	50x50	30x20
36030001	Panel UX450 2200x300	300	50x50	30x20
36050001	Panel UX450 2200x500	500	50x50	30x20
36070001	Panel UX450 2200x700	700	50x50	30x20
36080001	Panel UX450 2200x800	800	50x50	30x20
36100001	Panel UX450 2200x1000	1000	50x50	30x20
36120001	Panel UX450 2200x1200	1200	50x50	30x20
36150001	Panel UX450 2200x1500	1500	50x50	30x20

Assembly Instructions

Assembly instruction - Troax Cage extension Kit 36909010, 36909110.pdf		PDF
Assembly instruction - Warehouse partitioning system UR350, UX450 Extension.pdf	Interactive 3D	PDF
Assembly instruction - Warehouse partitioning system UR350, UX450.pdf	Interactive 3D	PDF
Assembly instruction - Troax Cage start Kit 36909000, 36909100.pdf		PDF

Downloads

Name
Panel UX450 Partitioning System - datasheet	Type Product sheets	Download
