Bracket for Switches

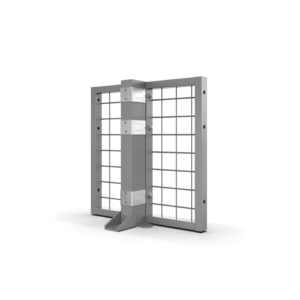

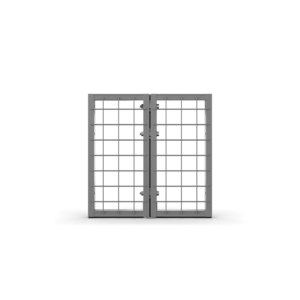

The 60x40 bracket is the key detail in the Safe Fix system, where two panels are bolted together with the bracket in the middle. With this Partitioning system, the panels normally are placed directly to the floor and the 60x40 posts are always located behind the panels. So, for example, when using steel sheet panel UR SP, there will be no gaps in the wall.

WP Partitioning System_Side.png

Variants
Assembly instructions
Downloads
Combine with
Interactive 3d

Variants

Art. Nr	Components
26504108	Bracket for 60x40 post
89050044	Bolt M8x55 Flange
89050525	Nut M8 (knurled collar)

Assembly Instructions

Assembly Instruction - Safe Fix System.pdf

Downloads

Name
Product sheet - SAFE FIX 60X40_EN.pdf	Type Product sheets	Download

Combine with

Panel UX450 WP

UX 450 is our original and strongest panel used in Warehouse Partitioning mesh walls.

Panel UR325 WP

UR 325 is the preferred mesh panel for aerosol storage and where small items are being stored.

Panel UR SP Partitioning System

UR SP is a steel sheet partition panel that is ideal when protection from outside view is requested.

Post 60x40 WP

Post 60x40 is the backbone of the partitioning wall system and it is compatible with all panel types and fixing systems.
