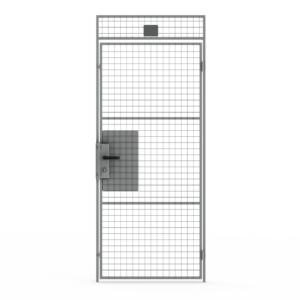

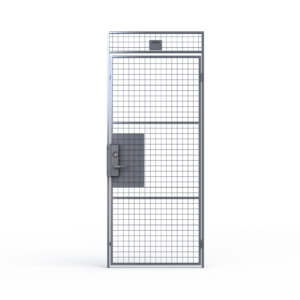

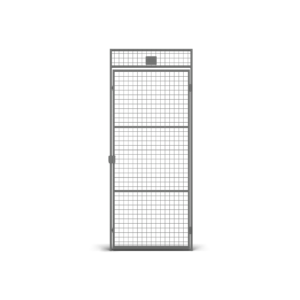

      Door UX450

      The UX 450 door is included in the Troax Medium system to be used in combination with UX 450 mesh panels or UR 350 panels as partitioning. The door is excellent for use in spaces that have relatively strong exterior protection. The padlock door has a specially designed cover to protect the padlock, minimising the risk of break-ins. The door is also available as a cylinder lock option. The leaf has a frame made from 30×20 mm steel tubing and two specially designed cross tubes, making it stable and secure. These doors are thresholdless, which makes them easy for people with disabilities to use and are delivered ready for installation. Doors are available in heights from 2,200 mm and there are two standard widths, 750 mm and 900 mm.

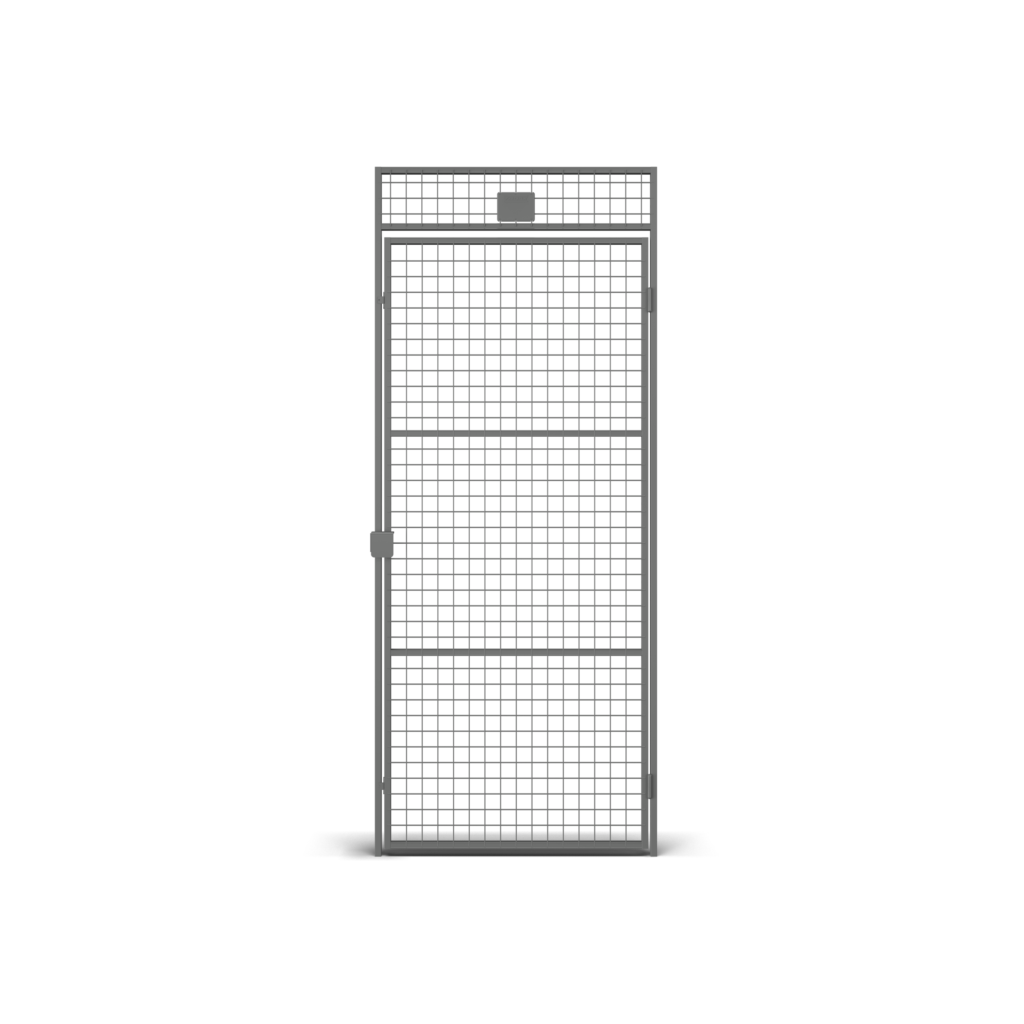

      Door UX450_Front.png Door UX450_Front.png

      Variants

      Finish on panels, posts and powder coated accessories has the last figure variants in ART. NO."1" = RAL 7037 Dusty Grey; "2" RAL 1018 Zink Yellow; "5"  All other RAL colours or cut/welded; "6" RAL 9005 Jet Black, "8" Hot dip galvanized



      Art. Nr Components Width (mm) Mesh size (mm) Frame (mm)
      36090311 Door UX450 AC 900 L 900 50x50 30x20
      36090331 Door UX450 EC 900 L 900 50x50 30x20
      36090401 Door UX450 AC 900 R prep. El. Strike 900 50x50 30x20
      36090411 Door UX450 AC 900 L prep. El. Strike 900 50x50 30x20
      36090421 Door UX450 AC 900 R El. Strike Solid 570 900 50x50 30x20
      36090431 Door UX450 AC 900 L El. Strike Solid 570 900 50x50 30x20
      36075301 Door UX450 AC 750 R 750 50x50 30x20
      36090441 Door UX450 AC 900 R El. Strike Solid 571 900 50x50 30x20
      36075001 Door UX450 P 750 R 750 50x50 30x20
      36090451 Door UX450 AC 900 L El. Strike Solid 571 900 50x50 30x20
      36075011 Door UX450 P 750 L 750 50x50 30x20
      36075311 Door UX450 AC 750 L 750 50x50 30x20
      36090001 Door UX450 P 900 R 900 50x50 30x20
      36090011 Door UX450 P 900 L 900 50x50 30x20
      36090301 Door UX450 AC 900 R 900 50x50 30x20
      36075321 Door UX450 EC 750 R 750 50x50 30x20
      36075331 Door UX450 EC 750 L 750 50x50 30x20
      36090321 Door UX450 EC 900 R 900 50x50 30x20

      Assembly Instructions

      Assembly instruction - Plastic spacer Cetus Assa.pdf Interactive 3D PDF

      Downloads

      Name
      Product sheet Door UX450
      Type
      Product sheets       		Download

      Combine with

      Panel UX450

      The UX 450 mesh panel is the base of Troax Medium.
      Read more

      Panel UR350

      The UR 350 panel is our most used panel and is the backbone of Troax Classic.
      Read more
