Variants
| Art. Nr | Components |
|---|---|
| 50530011 | Shelf 1100x890, 500kg/m2 0105.4494.PG, mesh 100x50 |
| 50530003 | Shelf 1100x890, 800kg/m2 0105x2893.PG, ANSI 500kg |
Our rapid prototyping process allows us to verify the customer’s needs and design the ideal solution for mesh shelving with dividers.

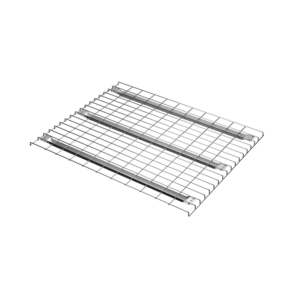

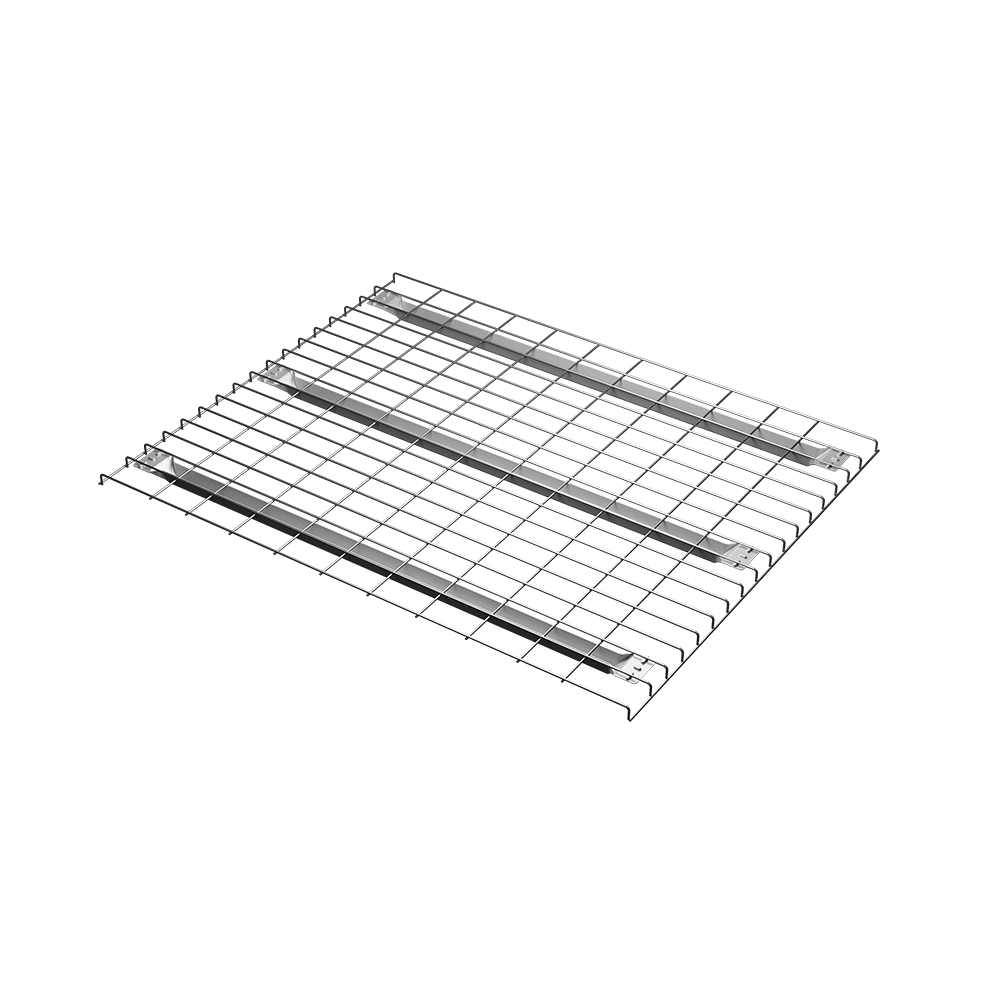

The 500 Kg mesh shelf is made of three omega support bars and welded wires.
The standard mesh aperture dimensions are 50x100 mm and the smallest customized mesh aperture is 25x25 mm.
All wire ends are rounded for a smooth finish, and there is also a safety wire in the front and back of the shelf to protect against injuries.
Only high-quality steel is used, with the grade of DX51D+Z. The omega profiles have a tensile strength of 270-500 MPa, and the wire tensile strength is between 600-700 MPa
Accessories
Dividers
Troax offers all types of dividers in different sizes and shapes to optimize your shelf solution.
