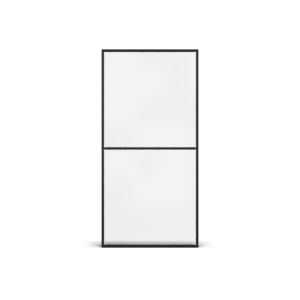

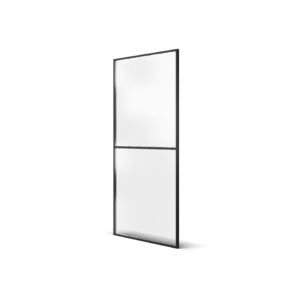

Panel ST PC

The PC panel combines maximum visibility with robust protection. The thermoplastic composition delivers exceptional fire performance and impact resistance for demanding machine guarding environments.

Full visibility with superior impact resistance
Fire-retardant and heat-resistant properties

Product information
Variants
Downloads
Video
Combine with
Accessories

Product information

The polycarbonate panel system integrates advanced material technology with practical machine guarding requirements. The 3 mm polycarbonate sheets mount securely into the 30x20 mm frame using internal screws, achieving an impact resistance of 1,600 joules when installed with Smart Fix system. Available in 8 widths from 200-1,500 mm for 2,200 mm system height. The standard black RAL 9005 frame provides optimal contrast, with custom RAL colors available. The naturally transparent, flame-retardant properties make it ideal for applications requiring both clear visibility and fire safety compliance.

Variants

Height 2050 mm

Art. Nr	Components	Width (mm)	Mesh size (mm)	Frame (mm)
31120606	Panel ST PC 2050x1200 3mm	1200	Polycarbonate	30x20
31150606	Panel ST PC 2050x1500 3mm	1500	Polycarbonate	30x20
31020606	Panel ST PC 2050x200 3mm	200	Polycarbonate	30x20
31030606	Panel ST PC 2050x300 3mm	300	Polycarbonate	30x20
31050606	Panel ST PC 2050x500 3mm	500	Polycarbonate	30x20
31070606	Panel ST PC 2050x700 3mm	700	Polycarbonate	30x20
31080606	Panel ST PC 2050x800 3mm	800	Polycarbonate	30x20
31100606	Panel ST PC 2050x1000 3mm	1000	Polycarbonate	30x20

Downloads

Name
Test Report - Smart Fix 1600J, PC.pdf	Type Test reports	Download

Video

Troax Polycarbonate, PC, Panel

Combine with

Post 60x40

The 60x40 mm post is assembled together with the Smart Fix, Rapid Fix and Safe Fix system.

Smart Fix

Smart Fix is our best-selling safe guard system. This machine guard is extremely durable and fits most applications.

Cut Profiles

The cut profiles make it possible to easy adjust the panels to exact requested height and width on site.
