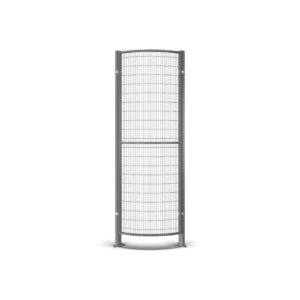

Panel Curve_Front.png
Product information

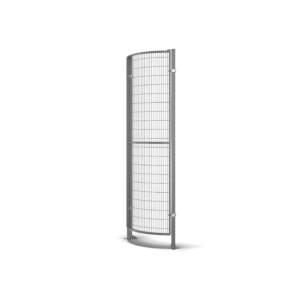

The Panel Curve system delivers elegant corner solutions through precision-engineered panel modification. Built on the ST20 mesh panel platform with 800mm width, the system features strategically placed cut-outs in the middle tubes that enable controlled bending during installation. The flat delivery configuration ensures efficient transportation and storage while maintaining installation flexibility. During assembly, the panel transforms to create a seamless 90-degree corner transition between posts, eliminating the need for additional corner components. This innovative approach maintains system aesthetics and protective capabilities while simplifying corner implementations in machine guarding installations.
Variants
| Art. Nr | Components | Width (mm) | Mesh size (mm) | Frame (mm) |
|---|---|---|---|---|
| 20080631 | Panel ST20 2050x800 Curve | 800 | 20x100 | 19x19 |
Downloads
| Name | ||
|---|---|---|
| Test Report - Smart Fix 1600J, Panel Curve.pdf |
Type
Test reports |
Download |
Video
Assembly instruction - Panel Curved
