Doors - Troax

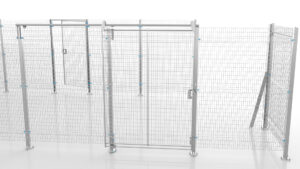

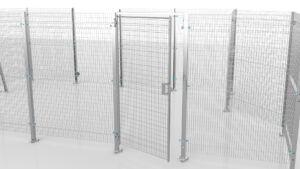

Troax offers a range of hygienic stainless steel doors, including single hinged, double hinged, and single sliding doors, to suit your needs. The single sliding have a door leaf that is 1500 or 2300 mm, it is equipped with a low friction upper trolley. The single hinged doors are available with 800 or 1000 mm door leaves, while our double hinged doors are available with 800 + 800 mm or 1000 + 1000 mm door leaves. The door leaves are made of 20x30 mm framed panels with flat welded mesh in 4 and 6 mm wire, providing good stability. Magnetic locks and brackets for safety switches are available as an option for added security.

Variants
Assembly instructions
Downloads

Variants

Art. Nr	Components
16501050	Kit Magnetic Lock BG Hinged
16600050	Kit switch BG 5 Fortress NCS11+NCA Dbl. hinged
16501060	Kit Double Hinged door BG
16600060	Kit switch BG 6 Sensaguard Dbl. hinged
16501070	Door stay 1600mm BG
16600070	Kit switch BG 7 Schmers. BNS40S Sliding
16501080	Door stay 2000mm BG
16600080	Kit switch BG 8 Schmers. RSS36D Sliding
16501090	Kit Magnetic Lock BG Hinged Double
16502020	Door blade 1500mm BG Sliding
16502025	Upper guide 3000mm BG Sliding
16502030	Door blade 2300mm BG Sliding
16502035	Upper guide 4800mm BG Sliding
16502040	Kit Sliding Door BG
16502050	Kit Magnetic Lock BG Sliding
16501010	Door blade 800mm BG Hinged
16502060	Kit Sliding Door BG 2300
16501015	Door stay 800mm BG
16600010	Kit switch BG 1 Schmers. BNS40S Single hinged
16501020	Door blade 1000mm BG Hinged
16600020	Kit switch BG 2 Schmers. RSS36D Single hinged
16501025	Door stay 1000mm BG
16600030	Kit switch BG 3 Schmers. BNS40S Dbl. hinged
16501040	Kit Hinged Door BG
16600040	Kit switch BG 4 Schmers. RSS36D Dbl. hinged

Assembly Instructions

Assembly Instruction BG - W2000 Sliding Door.pdf		PDF
Assembly Instruction BG - Sliding Door.pdf		PDF
Assembly Instruction BG - Switch RSS For Single Hinged Door.pdf		PDF
Assembly Instruction BG - Switch SENSAGUARD For Double Hinged Door.pdf		PDF
Assembly Instruction BG - Switch RSS Sliding Door.pdf		PDF
Assembly Instruction BG - Switch RSS For Double Hinged Door.pdf		PDF
Assembly Instruction BG - Switch NCS For Double Hinged Door.pdf		PDF
Assembly Instruction BG - Switch BNS For Double Hinged Door.pdf		PDF
Assembly Instruction BG - Switch BNS For Sliding Door.pdf		PDF
Assembly Instruction BG - Switch BNS For Single Hinged Door.pdf		PDF
Assembly Instruction BG - Single Hinged Door.pdf		PDF
Assembly Instruction BG - Magnet Lock for Sliding Door.pdf		PDF
Assembly Instruction BG - Double Hinged Door.pdf		PDF
Assembly Instruction BG - Magnet Lock for Double Hinged Door.pdf		PDF
Assembly Instruction BG - Magnet Lock for Hinged Door.pdf		PDF

Downloads

Name
Product sheet - BG Doors_EN.pdf	Type Product sheets	Download
